This is a highly professional and specific requirement. Regarding your request for "ultrafine kaolin powder production, with a finished product fineness of 4000 mesh (approximately D97 = 5-6 μm), a daily output of 40 tonnes, using an ultrafine vertical mill", here is a detailed analysis and answer.

This requirement represents a large-scale ultrafine powder processing project, demanding extremely high equipment technology and system integration capability.

1. Feasibility analysis of the project

Conclusion: Fully feasible, but it is essential to select an equipment supplier with genuine technical capability.

• Fineness (4000 mesh): This is an ultrafine powder grade, requiring a vertical mill equipped with a high-precision turbo classifier system.
• Output (40 tonnes/day): Based on 20-24 hours of operation, the hourly output must reach 1.7-2.0 tonnes. At 4000 mesh, this places considerable demands on the grinding efficiency and classification capability of the ultrafine vertical mill, requiring a medium to large-sized vertical mill.
• Material (kaolin): Kaolin has low Mohs hardness (approximately 2-2.5), but it tends to stick and agglomerate after ultrafine grinding. This requires the vertical mill system to have excellent heat dissipation and anti-sticking characteristics.

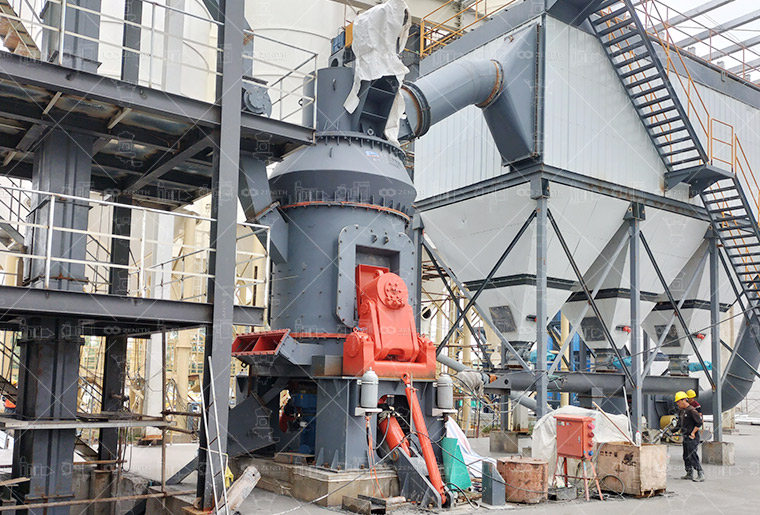

2. Recommended core equipment: the ultrafine vertical mill

Your proposal of an "ultrafine vertical mill" is entirely correct. Compared with traditional Raymond mills and ball mills, it offers significant advantages in performance and energy consumption.

Working principle:

Material is fed into the centre of the grinding disc. Centrifugal force moves the material beneath the grinding rollers, where it is crushed and ground into powder. The ground material is lifted by the air flow and transported to the turbo classifier located above. The classifier rotates at high speed, allowing only powder finer than the cut point (for example 5 μm) to pass through into the collection system; coarse powder is returned to the grinding disc for re-grinding.

Advantages of this equipment for your project:

1. High capacity and high energy efficiency: Using the "material-bed grinding" principle, the mill achieves high energy efficiency, making it the economical choice for reaching the 40 tonnes per day production target.
2. Fine classification: The core technology lies in the high-precision turbo classifier. By adjusting the classifier speed, the finished product fineness can be controlled stably and accurately to 4000 mesh.
3. System integration and drying: It can be integrated with a hot air system. If the kaolin raw material has slightly high moisture, the mill can dry and grind simultaneously, achieving two goals at once.
4. Environmentally friendly and quiet: Fully enclosed operation under negative pressure minimises dust leakage and produces less noise than a ball mill.

3. Key points when selecting equipment

When discussing with suppliers, please confirm the following points:

1. Classification technology: This is the core technology of the project. Ensure that the precision, stability and adjustment range of the classifier are sufficient to produce 4000 mesh consistently over long periods.
2. Anti-sticking and heat dissipation: Ultrafine kaolin powder tends to adhere to the walls of the grinding chamber and the piping. Ask the supplier whether they offer special designs, such as:
   • A special flow-guide channel inside the grinding chamber to reduce eddy currents.
   • Air or water cooling systems to cool the grinding rollers and main shaft and reduce system temperature.
   • Special lubricating materials or anti-sticking treatment for the internal liners.
3. Wear-resistant materials: Although kaolin has low hardness, ultrafine grinding still wears the grinding rollers and grinding disc. Wear-resistant materials such as high-chromium alloy or ceramic alloy are recommended to ensure product whiteness and extend service life.
4. Collection system: For 4000 mesh ultrafine powder, a high-efficiency pulse bag dust collector is required for final collection, with a collection efficiency of at least 99.9%.
5. Automation: A high-end vertical mill should be equipped with an automatic control system enabling one-touch start and stop, online fineness adjustment and fault alarms, reducing the difficulty and workload of manual operation.

4. Recommended manufacturers and contact suggestions

For projects of this scale and fineness, you should contact leading domestic ultrafine mill manufacturers directly.

Priority recommendation:

• Guilin Hongcheng:
  • Recommendation: With extensive technical expertise in ultrafine vertical mills, their HLMX series ultrafine vertical mill fully meets your requirements (4000 mesh, approximately 2 tonnes per hour). They have deep experience in the ultrafine grinding of non-metallic minerals such as kaolin and calcium carbonate.
  • How to contact: Visit their official website and contact the sales department directly, stating the project: "HLMX ultrafine vertical mill for kaolin, 4000 mesh, 40 tonnes per day."
• Liming Heavy Industry:
  • Recommendation: Another leading manufacturer in the industry, whose LUM series ultrafine vertical mill offers advanced technology and stable performance. They have a strong R&D team and after-sales service and can provide comprehensive solutions.
  • How to contact: Also search their official website for the ultrafine vertical mill product line and provide your detailed requirements.

Recommended action steps:

1. Provide samples: This is the most important step! Send your raw kaolin samples (at least 50 kg) to two or three potential suppliers.
2. Request testing: Ask for a free grinding test using their ultrafine vertical mill at their test centre or production facility.
3. Evaluation report: After testing, request a detailed test report including:
   • Finished product fineness report (particle size distribution curve).
   • Unit power consumption (kWh/tonne).
   • Recommended equipment model and detailed quotation.
   • Proposed process flow diagram and plant layout.
4. Review case studies: Ask the supplier for customer case studies with similar scale and materials. If possible, carry out an on-site inspection.

Summary

Your "4000 mesh kaolin, 40 tonnes per day" project is a typical modern ultrafine powder production line. The technology is mature. What matters is choosing a supplier that can provide a high-performance ultrafine vertical mill and has deep experience in the industry.

Recommended immediate action: contact the two leading companies Guilin Hongcheng and Liming Heavy Industry directly and send samples for testing. By comparing their test reports and proposals, you will be able to make the most informed investment decision.
